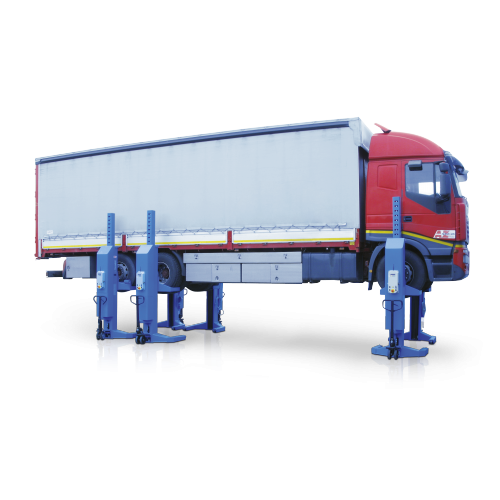

Rav 305/307/308HWS Electro-hydraulic Wireless Column Lift

From: £18,360.00 (excluding VAT)

  • Delivery included
  • Includes installation
    (where applicable)
  • Product demo given
Enquire Now Full Description

Or call us on 01691 679900 for more information.

Features

  • Control panel available on each column
  • All columns are identical
  • Configuration sets: 4-6-8 columns
  • Mechanical locking system/parking
  • Wireless 2.4 GHz  communication among columns
  • Automatic selection of  transmission channel with display indication

Operation Modes

All - Simultaneous operation of all columns.

Group

Simultaneous operation of selected pairs of columns.

Single

Single column operation.

Operation Modes

Synchronization at a height difference of 30 mm.
Control board according to ISO standards 13849.

Technical Data

  RAV 307HWS RAV 308HWS
Capacity per column 7500 kg 8500 kg
Motor 3 kW
Column weight 650 kg 670 kg
Rise time 90”
Lowering time 70”
Maximum tyre diameter 1.200 mm
Minimum tyre diameter 900 mm
Minimum rim diameter 580 mm
