Rav 1100 Series In Ground Piston Lift

From: £5,035.00 (excluding VAT)

  • Delivery available
  • Includes installation
    (where applicable)
  • Product demo given
Enquire Now Full Description

Or call us on 01691 679900 for more information.


  • Perfect synchronization between cylinders regardless of load distribution
  • Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
  • Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture
  • Self-controlled lowering speed
  • All mechanical, hydraulic and electrical components manufactured in compliance with the respective European Safety Standard


RAV1110NK - kg 3.500

Pads can be adjusted in height and are suitable for quick housing of extensions.

RAV1120 - kg 3.500

The run-up ramps can easily and quickly be blocked in horizontal position to serve as platform extensions.
Min. height: 95mm.

RAV1120M - kg 3.500

Adjustable distance between the platform for different set-up pinch weld or frame vehicles.

RAV1125 - kg 3.500

Lift with extra-low platforms: only 60mm. Platforms can be adjusted in length.

RAV1125M - kg 3.500

Lift with adjustable platforms: both in length and in width.
Min. height: 95mm.

RAV1150U - kg 5.000

Lift for cars and vans, also with long wheel-base, up to an overall weight of 5000 kg.

RAV1140U - kg 3.500 Body Shop

Arms can be shifted along two lateral supports to position the vehicle on the body shop bench. Waterproof inground metal frame.

RAV1131 - kg 3.500 Service+Inspection

Minimal platforms height 140 mm: easy access also for cars with low spoilers. Limited length.

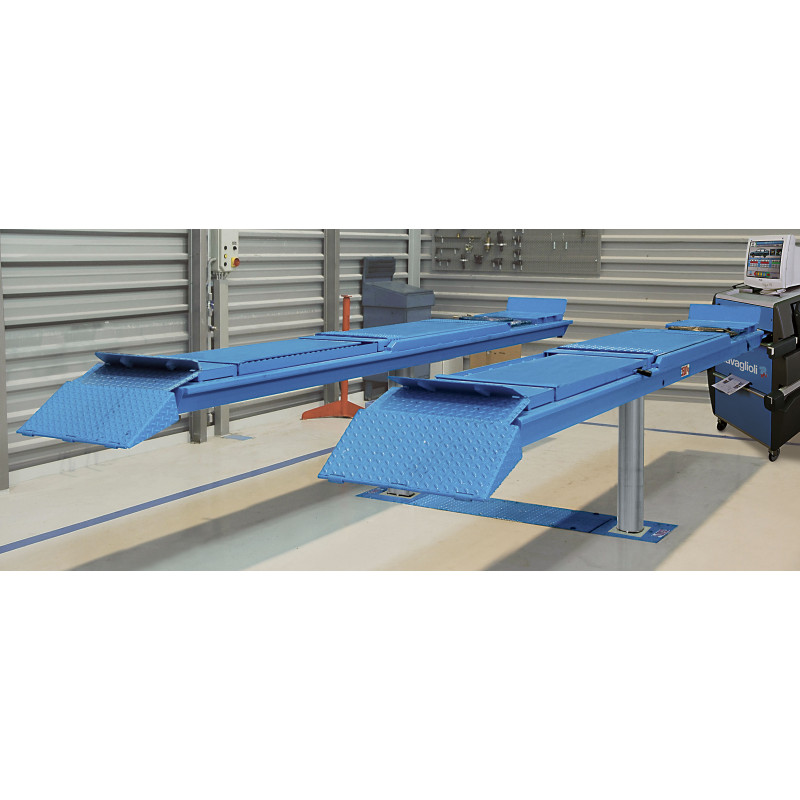

RAV1132 - kg 3.500 Wheel alignment

Lifts for wheel alignment with front recesses for turntables and rear slip plates.
