Mercedes Benz approved

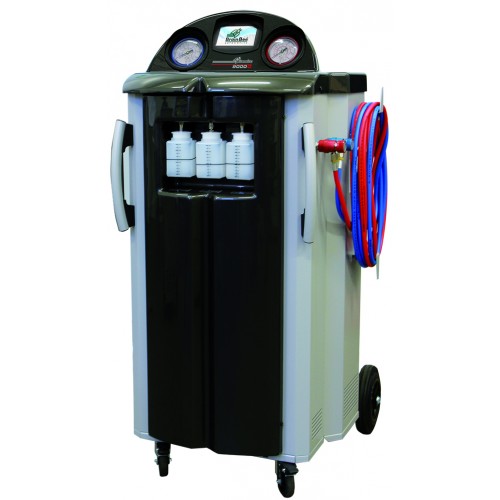

9000D-1234 is the ideal A/C Station for those who want to obtain the best results without any complications.

9000D-1234 also includes electronic gauges and valves to deliver an extremely friendly and intuitive operating interface.

The heart of 9000D-1234 is its LCD user-interface display. Simple and intuitive, the touch screen displays all the operating functions which can be activated in a quick and precise manner.
Furthermore, the clarity of the display ensures good visibility in almost all lighting conditions.

All serviceable parts and components in the 9000D-1234 are easily accessible and located in a position that allows for fast replacement.
Recharge hoses too have been equipped with external quick couplers so that you don’t have to open the station in case of replacement.
9000D-1234 can be easily updated: using USB port, every available update can be downloaded from the web and installed on the station very easily

PRINTER and R-1234yf GAS IDENTIFIER included

ECHNICAL FEATURES

RECHARGE VESSEL 12 L

GAS TYPE R1234YF
DISPLAY GRAPHIC 4,3”, 480x272 (WIDESCREEN) 65536 COLOURS - TOUCH DISPLAY
PRINTER
SOFTWARE UPDATE USB
VESSEL LEVEL MEASUREMENT ELECTRONIC SCALE
MAX OPERATING PRESSURE (PED CERTIFIED) 20 BAR
PED CATEGORY III
CLIMA DATABASE - CARS  R1234YF
DRAIN OIL CONTAINER 250 ML - ELECTRONIC SCALE
PAG INJECTION OIL CONTAINER 250 ML - ELECTRONIC SCALE
POE INJECTION OIL CONTAINER OPTIONAL (HYBRID KIT)
UV DYE CONTAINER 250 ML - ELECTRONIC SCALE
OIL CARE VALVE (NEW PAG OIL CONTAINER)
VACUUM LEVEL 0,02 MBAR
COMPRESSOR 14 CC
PRESSURE SAFETY SWITCH
DEHYDRATING FILTER CAPACITY (RECOVERED REFRIGERANT) 45 KG
NON-CONDENSING VENT VALVE AUTOMATIC, ELECTRONIC
FILLING HOSES LENGTH 3 M
HP AND LP ANALOG 80 MM CL.1
INTERIOR + EXTERIOR FLUSHING VAS (W/KIT)
POWER SUPPLY 230 VAC - 50 HZ
DIMENSION: 670 X 740 X 1200 MM (LXPXH)
WEIGHT: 95 KG
